Zojuist hebben wij onze cloud servers voorzien van de nieuwste UniFi Network 8.1.113 versie.
De nieuwe versie voegt oa ondersteuning toe voor NAT Pooling (meerdere IP adressen vanaf internet verbinden met netwerken), L3 netwerk isolatie (ACL), Apparaat isolatie, OSPF Dynamic routing en een nieuwe Netwerk viewer om snel eenvoudig te kunnen zien wat er speelt binnen het netwerk.
De volledige update lijst vind je hieronder in het Engels:

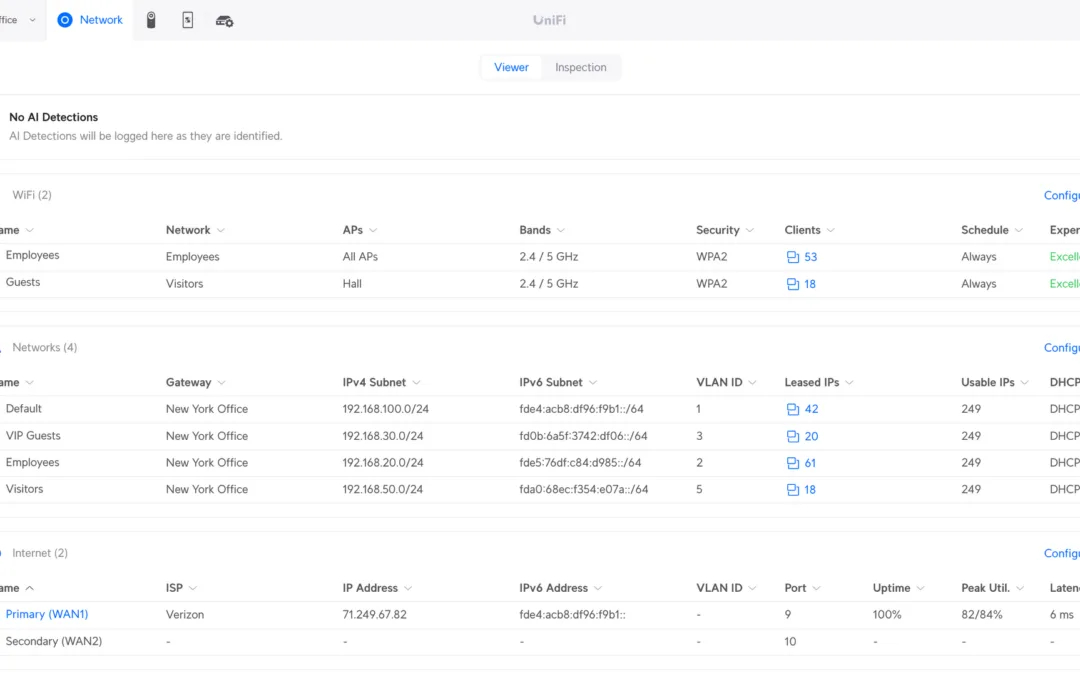

Network Viewer
Detailed overview of the entire network allowing you to see everything in one place.
- See WiFi, Virtual Networks, Internet, VPNs and much more.
- Directly open the relevant settings page to quickly alter the configuration.

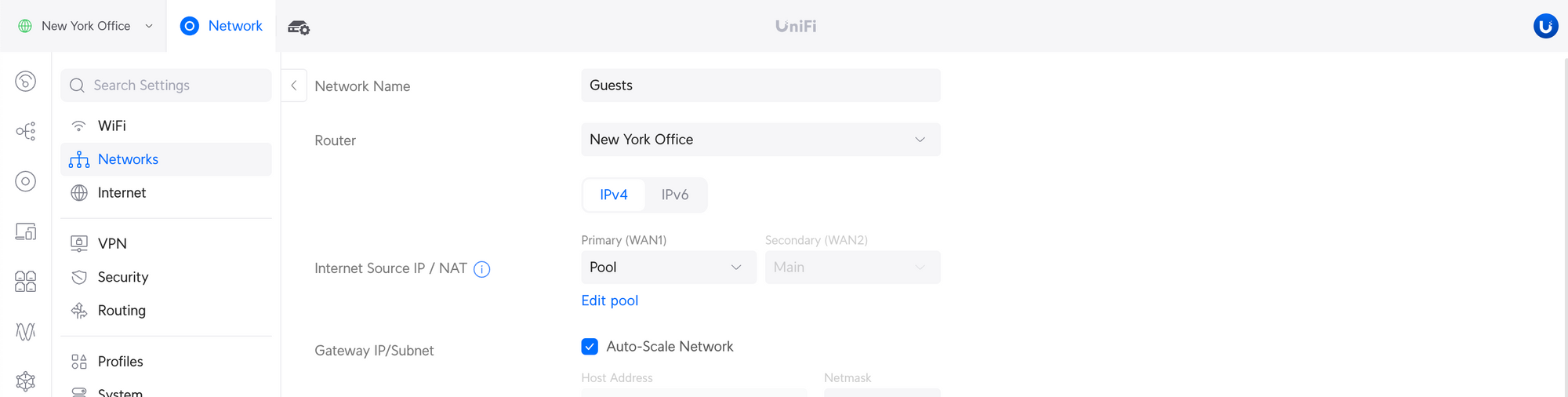

NAT Pool
Adds the ability to NAT traffic to a pool of addresses on specific networks.
- Configure NAT Pool using the Internet Source / NAT option on Virtual Networks.
- This option will appear when Additional IP Addresses are configured on the WAN.
Addition of custom Source and Destination NAT rules is scheduled for an upcoming release.

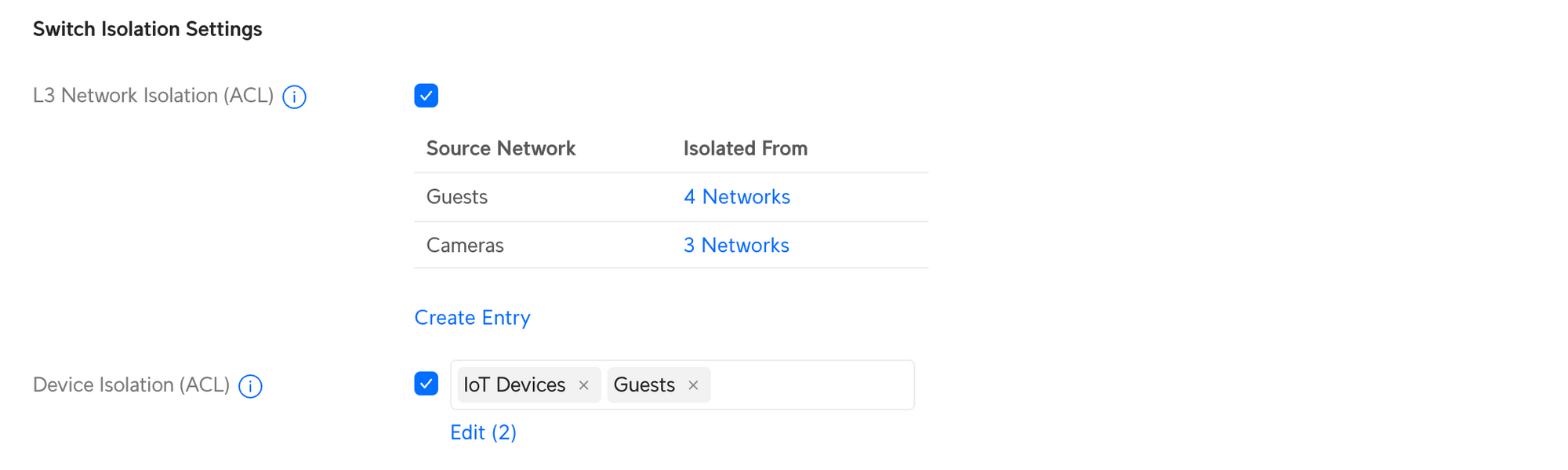

L3 Network Isolation and Device Isolation (ACL)
Control traffic on your network using Access-Lists (ACLs) on UniFi Switches.
- L3 Network Isolation automatically blocks all traffic between devices in different networks.
- Device Isolation automatically blocks all traffic between devices in the same network.
- See the Device and Network Isolation Help Center article for more information.
Addition of custom Access Lists is scheduled for an upcoming release.
Topology Rotation
Rotate your topology horizontally for a better overview on wide screen displays.

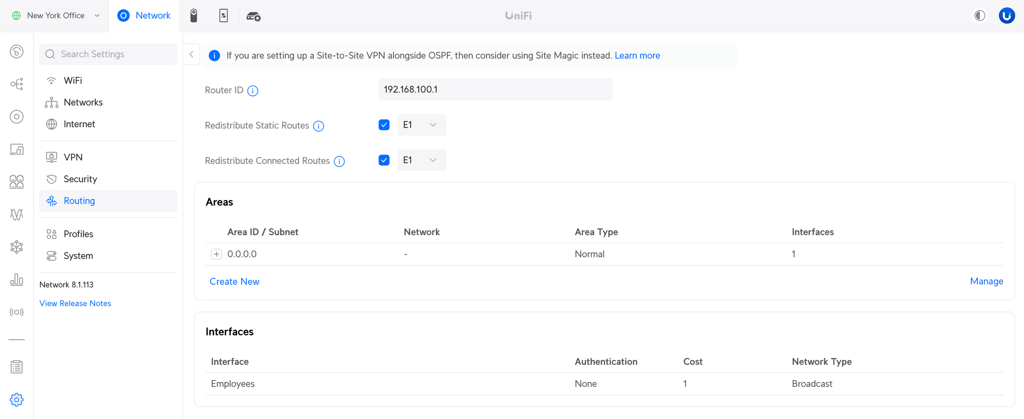

OSPF Dynamic Routing Protocol
Enable OSPF on Virtual Networks to form neighbor connections with other gateways and exchange routes.
- Enable OSPF on one or more Virtual Networks.
- Customize OSPF area types, timers, cost, passive interfaces and authentication settings.
- Control advertisement of connected and static (Route-Based IPsec VPN) routes with redistribution.
- Forming OSPF neighbor connections over Route-Based IPsec VPNs is scheduled for an upcoming release.
- See the OSPF Help Center article for more information.
Addition of the BGP Dynamic Routing Protocol is scheduled for an upcoming release.
InnerSpace
A powerful deployment visualization tool that allows you to view your UniFi system’s WiFi coverage in your own floor plan.
Improvements
- Added tabs to the side panel to navigate quickly through recently visited panels.
- Enabled with Side Panel Tabs option in the Advanced System settings (disabled by default).
- Added the ability to toggle “Allow Internet Access” and “Isolate Network” via the Network settings.
- This previously only existed in VLAN Magic settings.
- Isolate Network blocks communication to all other Virtual Networks.
- Added NAT Pooling. Requires a UniFi (Cloud) Gateway with firmware version 3.2.9 or newer.
- Added support for OSPF. Requires a UniFi (Cloud) Gateway with firmware version 3.2.12 or newer.
- OSPF is limited to one instance and cannot be used with Site Magic simultaneously.
- Added InnerSpace for Network Application Servers.
- Added L3 Network Isolation and Device Isolation (ACL). Requires a UniFi Switch with firmware 7.0.44 or newer.
- Added option to invert the Traffic Statistics to view by client device or application data.
- Added the ability to copy Switch configuration between models with the same port counts.
- Added updating progress bar in the Devices list.
- Added STP and Loop detection logs. They will show in Network Viewer page in Network AI section.
- Added the option “All” to the AP group setting in WiFi settings.
- Renamed Isolation in Network settings to Guest Network.
- Renamed Traffic Routes to Policy-Based Routes.
- Added Fallback option to Policy-Based Routes.
- Added support for RF Scanning 6GHz channels.
- Added warning messages when adding many Multicast DNS networks.
- Added Etherlighting Breathing on/off toggle.
- Added 1h time range to Traffic Statistics.
- Allow removing admins without any roles on Network Application Servers.
- Allow using .local domains in Virtual Network and Client settings.
- A warning is shown instead of completely preventing the use of it.
- Improved validation for RADIUS authentication credentials.
- Improved feedback for devices in the Adoption Failed state.
- Improved client roaming System Logs.
- Improved Traffic Stats data collection to improve data accuracy.
- Upgrading to this version will take longer for larger setups due to stat migration.
- Improved validation for Port Forward ports.
- Improved validation message for VLAN0 QoS Tag.
- Improved Admins page UX on Network Application Servers.
- Improved Connection Logs timeline user experience.
- Related Content Filtering settings are now also getting removed when removing Networks.
- Improved stability on Express Consoles.
- Improved user experience when Networks are removed/added/modified.
- Improved admin changelogs.
- Improved DHCP Leased IP user experience and accuracy.
- Improved Network isolation user experience.
- Improved Topology page user experience.
- Updated the WiFi Coverage user experience.
- Updated the Settings layout user experience.
- Added RADIUS Secret validation restriction for backslashes.
- Moved the AP selector to the top bar on the all Radio section.
- Reduced latency test from 60 to 30 seconds.
- Removed VLAN range validation in the Internet Settings.
- Automatically disable Fixed IP for devices/clients when their IPs are excluded by subnet changes.
Firewall
- Improved Firewall Rules user experience.
- Firewall Rules are now more detailed showing additional columns.
- Combined Traffic and Firewall Rules into one section with Simple and Advanced toggle.
- Advanced section also includes Traffic Rules to show the relationship between Traffic and Firewall Rules.
- Added Firewall Rule IDs.
- Added filters to Firewall Rules.
- Improved Firewall Rule creation.
- Added validation for how many IP addresses can be added for Traffic Rules.
- Updated Traffic Rules user experience.
IPv6
- Added IPv6 WAN address to Internet Settings and Internet Health.
- Added IPv6 address and subnet to the Network settings for Prefix Delegation, Single Network and Static.
- Added IPv6 link local address to the Network settings.
- Added last seen IPv6 address for Offline clients.
- Added IPv6 address to Wireless clients panel. Requires UniFi Access Point firmware version 7.0 or newer.
- Prevent disabling IPv6 when DS-Lite is enabled.
VPN
- Added more information to the VPN Client settings.
- Added validation for Local and Remote IP Uniqueness for Site-to-Site VPNs.
- Added ability to configure Cipher for OpenVPN Site-to-Site VPNs. Requires a UniFi (Cloud) Gateway with firmware version 3.2.12 or newer.
- Allow bigger network size for VPN Servers on UniFi (Cloud) Gateways.
- Improved WireGuard VPN Server Client IP Validation.
WiFi
- Added a note with WiFi 6 deployment instructions in the WiFi settings when a 6GHz capable AP is adopted.
- Updated WiFi Network creation user experience when setup contains a 6GHz capable AP.
- The 6GHz band is automatically selected and defaults to WPA2/WPA3 encryption.
- Removed band steering in the AP property panel for Gen7 APs.
Switching
- Added Isolate Network for L3 Switch networks.
- Improved validation for creating L3 Static Routes.
- Improved user experience when configuring L3 Switch Networks.
Client and Device pages
- Added option to re-order UniFi Devices & Client tables.
- Added TX retry % for clients.
- Added TX retry columns to the Devices page.
- Allow searching clients by 802.1X Identity on the Clients page.
Bugfixes
- Fixed an issue where unidentified traffic wasn’t included in the Traffic Statistics page “All Traffic”.
- Fixed an issue where Network Isolation was not being applied to some IPv6 Networks.
- Fixed an issue where the OpenVPN client didn’t list the server address from the connection.
- Fixed the inability to create WAN2 on consoles with dual WAN after restoring backups from single WAN consoles.
- Fixed the inability to restore backups during the setup wizard on Application Servers in rare cases.
- Fixed page crashes when using the Europe/Kyiv time zone.
- Fixed missing translation for some suspicious activity hits.
- Fixed Admin Change Logs sometimes show IDs instead of change names.
- Fixed sorting issues with the 2.4/5/6 GHz columns on the Device page.
- Fixed inability to create more than 9 pre/post-authorization restrictions in Hotspot Manager.
- Fixed incorrect static IP address shown for PPPoE WAN in Internet Source IP / NAT.
